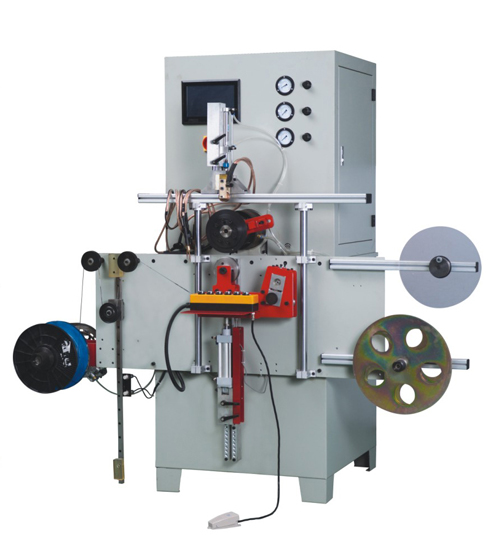

Automatic Winding Machine For Spiral Wound Gasket

Kaxite Seals proudly presents the Automatic Winding Machine for Spiral Wound Gasket – a precision-engineered solution designed for manufacturers and industrial facilities. This cutting-edge machine streamlines production by automating the winding process, ensuring consistent, high-quality gaskets with enhanced durability and efficiency. Ideal for sealing applications in demanding environments, it reduces manual labor, minimizes errors, and boosts productivity. With its advanced technology and user-friendly design, it solves common production challenges, offering reliability and peace of mind. What sets it apart is its innovative automation and robust build, tailored for seamless integration. Experience unmatched performance with Kaxite Seals – elevate your manufacturing process today!

Send Inquiry

Product Description

Automatic winding machine for spiral wound gasket Details

STYLE	KXT E300C Automatic winding machine for SWG
Working mode	Both Manual and Automatic mode
SS strip	Can use both pre-formed SS strip in pancake or 20-25kgs spool of flat strip
Producing ability	Standard package including models for 1"-10" 150# SWG with or without inner ring, other size model on request with extra charge
SWG thickness	4.5mm (also suitable for 3.2 and 6.4mm after changing roller parts, V shape winding or W shape winding for option)
Maximum gasket OD	500mm
Minimum gasket ID	25mm
Gasket OD tolerance	±0.2mm
Spindle speed	0--312.5rpm
Total power	8kw
Spindle motor power	1.5kw
Welder power	6kw
Power supply voltage	380V or 220V for option, 3 phases
Air compressor	0.6-0.8 MPA
PLC	xinjie
Production rate	20--30s /pc (for ANSI 6" 150LB)
Machine measurement	200012001900mm
Machine net weight	600kg
