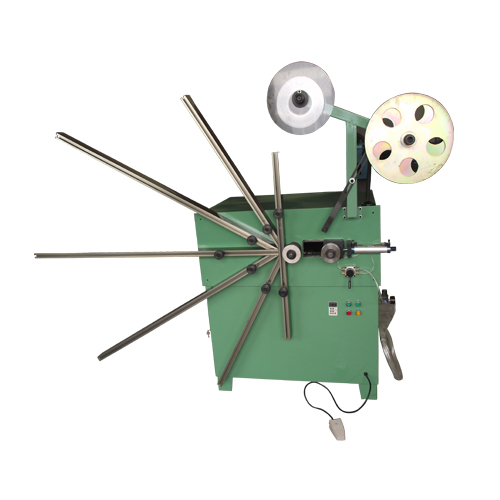

Manual Vertical Big Size Winding Machine For SWG

Introducing Kaxite Seals' Manual Vertical Big Size Winding Machine For SWG, a robust solution for efficiently winding large SWG materials in workshops. Its durable design, user-friendly manual operation, and superior precision ensure reliable performance, reducing manual effort and enhancing productivity for fabricators and industrial users. Experience seamless winding and improved workflow with this standout machine, offering exceptional value and durability compared to alternatives.

Send Inquiry

Product Description

Specification as following:
STYLE	KXT E1200 Vertical big size winding machine
Producing ability	spiral wound gasket with or without inner ring
SWG thickness	4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding)
Maximum gasket OD	1600mm
Minimum gasket ID	200mm
Gasket OD tolerance	±0.8mm
Total power	2.2kw
Spindle motor power	1.5kw
Frequency Converter	2.2G
Power supply voltage	380V/220V for option, 3 phases
linear speed	0-800mm/s
Air compressor	0.6-0.8 MPA
Machine measurement	22008501800mm
Machine net weight	220 kg
