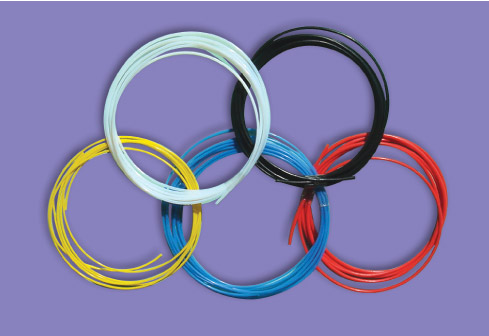

PTFE Extruded Tubing

Discover Kaxite Seals’ premium PTFE Extruded Tubing: a high-performance, durable solution ideal for chemical, medical, and industrial applications. Its non-stick, flexible design ensures reliability in harsh environments, offering superior resistance and ease of use. Perfect for engineers and manufacturers seeking efficiency and safety. Experience unmatched quality and trust in every tube—enhance your projects with Kaxite Seals today!

Send Inquiry

Product Description

[ Features ]

PTFE extruded tubing is manufactured by high pressure PTFE dispense resin mixed with additive, it is extruded and sintered. According to different demands, the tubing could be opaque or translucent.
PTFE is well known for its chemical resistance, not aging, non stick, self-lubrication, insulation and wide working temperature range from -180

to +260

. Because of these excellent properties, PTFE has a wide application in fields of chemical, mechanical, electronics, medical and aviation, etc.

[ Main properties ]

Properties	Unit	Result
Apparent density	g/cm³	2.10-2.20
Tensile strength (min)	MPa	20
Ultimate elongation (min)	%	200
Residual Lubricant Content (max)	%	0.5
Dialectric Strength (min)	KV/mm	10

[ Applications ]

Used as wire and cable jacket, inner lined pipes for corrosive fluids and used in hydrochloric acid heat exchanger, etc.

[ Specifications ]

ODXID(mm)	Tolerance (mm)	ODXID(mm)	Tolerance (mm)
Φ0.8X0.4	0.08	Φ12X10	0.2
Φ1X0.5	0.08	Φ14X12	0.2
Φ2X1	0.08	Φ16X14	0.2
Φ4X2	0.1	Φ18X16	0.3
Φ6X4	0.1	Φ20X18	0.3
Φ8X6	0.1	Φ22X20	0.3
Φ10X8	0.1	Φ24X21	0.3
