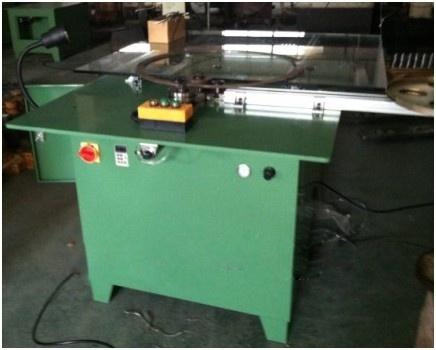

Medium Size Semi-Automatic Winding Machine

Revolutionize your packaging with the Kaxite Seals Medium Size Semi-Automatic Winding Machine—a durable, user-friendly solution for efficient sealing tasks. Perfect for small businesses and workshops, it ensures precision and ease, solving tedious manual work while boosting productivity with its compact design and reliable performance.

Send Inquiry

Product Description

Both manual model and automatic model available.

Specification as following:：
	KXT E1200S Medium size winding machine
STYLE	KXT E1200S-B Manual	KXT E1200S-C Semi-automatic
Producing ability	spiral wound gasket with or without inner ring	spiral wound gasket with or without inner ring
Special function	any shape of SWG	any shape of SWG
SWG thickness	4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding)	4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding)
Automatic function	/	PLC size controlling, semi-Automatic spot welding
Maximum gasket OD	1000mm	1000mm
Minimum gasket ID	100mm	100mm
Total power	2.2kw	8kw
Spindle motor power	1.5kw	1.5kw
welder power	/	6kw
Frequency Converter	2.2G	2.2G
PLC	/	xinjie
Power supply voltage	380V/220V for option, 3 phases	380V/220V for option, 3 phases
linear speed	0-800mm/s	0-800mm/s
Air compressor	0.6—0.8 MPA	0.6—0.8 MPA
Machine measurement	16801500920MM	16801500950MM
Machine net weight	280 kg	300 kg
