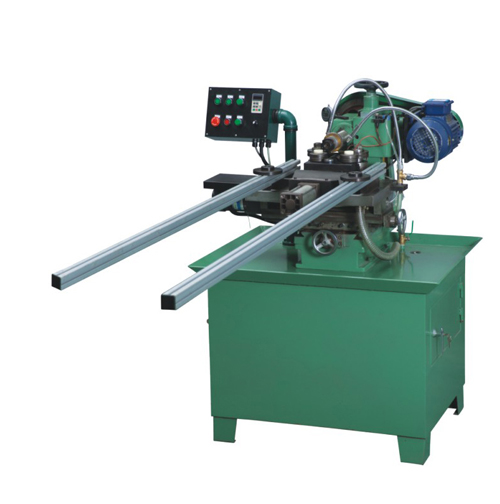

Kammprofile Gasket Machine

Introducing the Kammprofile Gasket Machine by Kaxite Seals: a precision tool for crafting durable seals in critical applications like industrial machinery. With advanced machining and high-quality materials, it ensures superior leak-proof performance, ideal for engineers and manufacturers seeking reliable solutions. This machine delivers peace of mind through enhanced safety and efficiency, setting itself apart with Kaxite Seals' innovative design for unmatched durability.

Send Inquiry

Product Description

Specification as following:
STYLE	KXT E1300 Kammprofile gasket machine
Gasket thickness	3 -- 4mm
Gasket width	10--50mm
Maximum gasket OD	4000mm
Minimum gasket ID	280mm
type of tooth	1.5mm or 1.0mm pitch tooth, or wave tooth
Total power	4kw
Spindle motor power	1.5kw
Spindle speed	0--1200 rpm
Feed motor power	0.4kw
Feed linear speed	0--20mm/s
Frequency Converter	2.2G 0.4G
Power supply voltage	380V/220V, 3phases, for option
Air compressor	0.6-0.8 MPA
Machine measurement	80010001360mm
Machine net weight	500kg
