Products

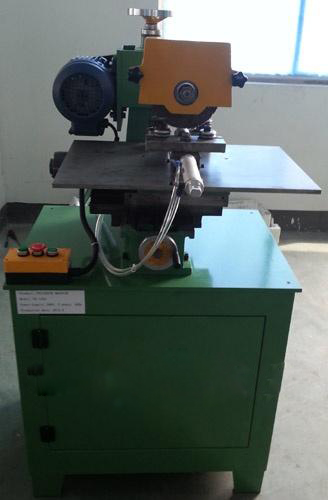

Polishing Machine For SWG Ring

This machine was designed to polishing the surface of the spiral wound gasket inner and outer ring


Send Inquiry


Description
Specification as following:：
STYLE KXT E1250 Polishing Machine for SWG ring
Polising ring thickness 2-4mm
Maximum ring OD 3000mm
Minimum ring ID 120mm
Total power 2.2kw
Spindle motor power 1.1kw
Feed moter power 0.04kw
Power supply 380V/220V for option, 3 phases
linear speed 0-100 mm/s
Air compressor 0.6--0.8 Mpa
Measurement 840 X 960 X 1560MM
Machine net weight 250kg
